Feature:
1. Application: Rearview camera control box is compatible with various vehicles, including school buses, buses, tank trucks, engineering vehicles, large trucks, boats, coaches, yachts, and more.
2. 4 Channel Video Converter: Vehicle video splitter supports up to 4 channels of sound input and 1 sound output, providing you with options to choose the display mode.
3. Information Overlay Support: The 4 channel backup camera system supports overlay of license plate numbers, time, driving information, and other characters, providing more convenience for your use.
4. Advanced Protection: The video splitter features safe interface, DC12V 24V wide voltage input, overload protection, short circuit protection, and reverse connection protection.
. Simple : The video converter device offers easy on, off, and delayed functionalities, and enables automatic full screen display of left turn, right turn, and reverse camera views.
Specification:

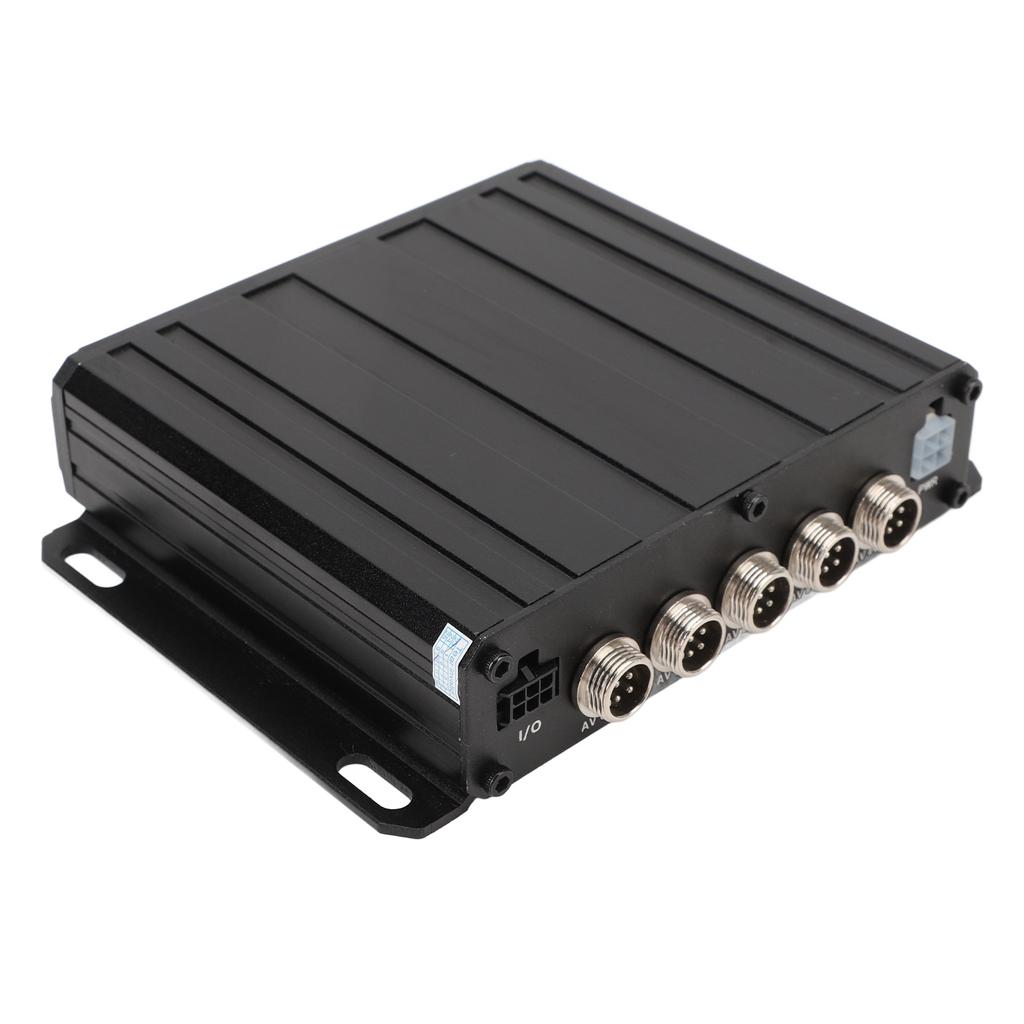

Item Type: 4 Channel Video Splitter
Material: ABS + Metal
Driving Playback: GPS Driving Track Computer Software Playback
Video System: PAL NTSC (Automatic Identification, Note: Need To Connect The Camera Before Power On, The Default Is PAL)
Video Interface: 4 Way Input (Aviation Interface), 1 Way Output (Aviation Interface)
Positive Mirror Image Selection: OFF ON
Default Power On Screen: Default Power On Four Screen Mode, Menu Selectable
Screen Mode: 4 Screen, 3 Screen, 2 Screen, 1 Screen
Support Power Supply Voltage: 9 To 36V Ultra Wide Voltage Input, With Overload, Short Circuit, Reverse Connection And Other Protection Circuits.
Rated Voltage: 12V 24V
Resolution: Support 1080P, 720P, D1, CIF, Etc.
Camera Input: 4 Way
: Remote Control
Remote Control Battery: Dry Cell x 2 (not included)
Power Loss Protection: Yes
Video Interface: Aviation Interface
USB Backup: Support
Memory Maximum Support: 512G
Delay shutdown: independent delay shutdown circuit, can support the system to continue to run after the vehicle is turned off, the delay time can be set by yourself.
Peripheral support: Support 1 group RS232, can connect ID card reader, fuel sensor, temperature sensor and other peripherals.
Software Upgrade: Support software upgrade via storage card and USB flash disk.
Power protection: the video content has a power failure protection function, and the video is automatically restored when powered on.
Video:
Support multi way comparison playback
Support fast forward, fast reverse, respectively support 2, 4, 8, 16 times the speed optional
Support alarm point search and time point search
Applicable:
Suitable for school buses, buses, tank trucks, engineering vehicles, large trucks, boats, coaches, yachts, etc.
Package List:
1 x Main Unit
3 x Cables
1 x Remote Control
1 x Key
1 x GPS
Note:
For software that requires downloading installation packages
