Parameters:
Motherboard Model: X7-V91-V1.6A-AB
Chipset: H61 Chipset Series
Memory Slot: 2*DDR3
Memory Capacity: Maximum Capacity 16GB
USB port: 6*USB2.0
SATA Interface: 4*SATA2.0
Network card: 100Gb network card
Graphics card slot: 1*PCIEX16
Expansion interface: 1*M.2
Product Features:
Support 2nd/3rd generation Celeron/Pentium/Core LGA1155 pin series processors.
Support DDR3 dual-channel memory slot:
support 1066/1333/1600/1866MHz, maximum capacity 16G memory.
Support 4xSATA interface, 12xUSB interface.
Support PCIE expansion slot x1.
Support 5.1 channel ALC887 chip.
4-layer PCB chassis, 2+1 phase power supply.
Support RJ45 100Mbps NIC interface.
Support Windows 7, Windows 10 32/64 bit operating system.
Specification:
Processor: Support 2nd/3rd generation Celeron/Pentium/Core LGA1155 pin series CPUs
Southbridge: H61 Chipset series.
Memory:
Technology: Dual Channel DDR3 1066/1333/1600/1866MHz
Maximum Capacity: 16GB
Memory Slots: 2x240PIN DDR3 DIMM slots
Rear I/O.
Ethernet:1xRealtek-compatible 100Gb Ethernet card
Audio:1x audio interface (MIC-IN,LINE-OUT,LINE-IN)
USB Interface: 6xUSB 2.0 ports
Display Interface: 1xVGA, 1xHDMI-compatible
Internal connectors:
PCIE:1pc (1xPCIE X16)
USB2.0 ports: 6pcs (2xUSB2.0 ports at one USB adapter)
SATA ports: 4xSATA2.0 ports
ATX PWR interface: 1x standard 4Pin power socket, 1x 24Pin standard power socket
Audio:1x 2x5Pin. JLPC:1x 2x5Pin
M.2 interface:1xNVME M.2

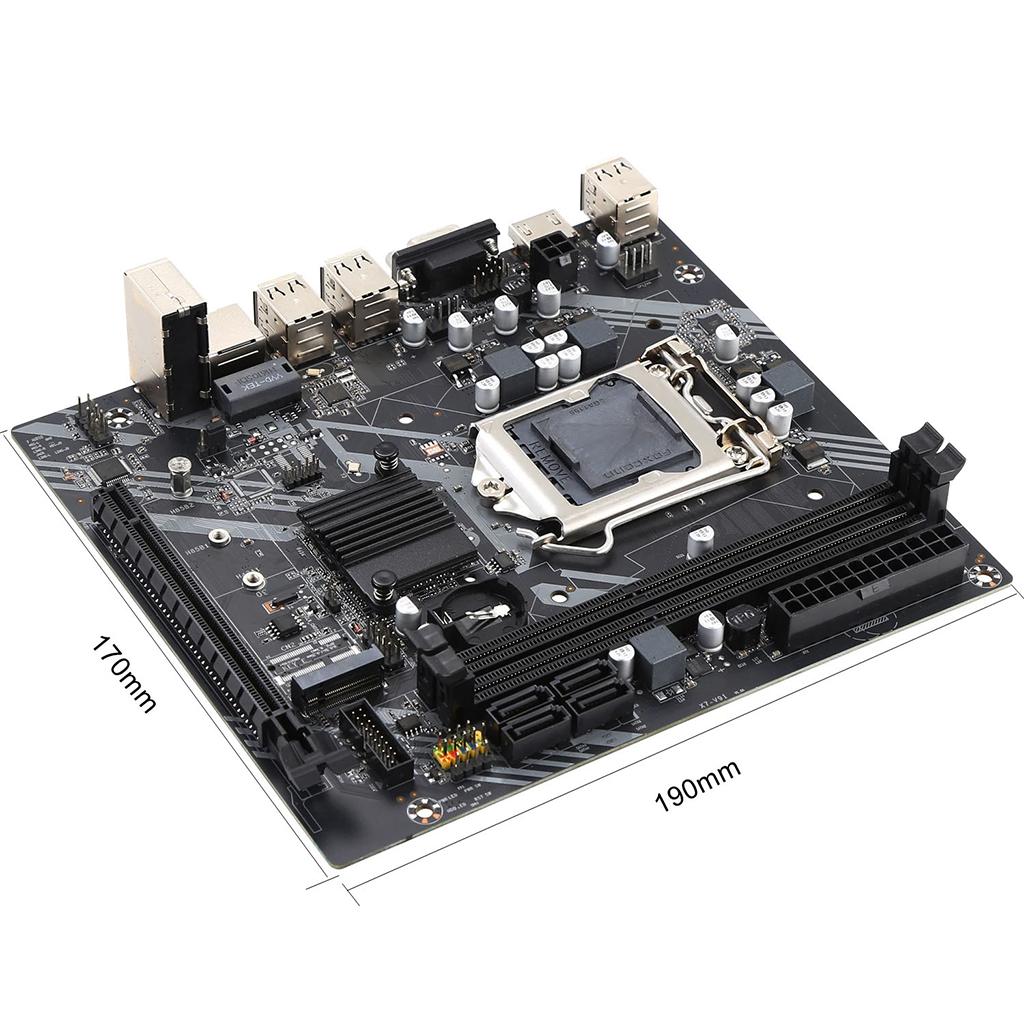

Size: 170*190mm
