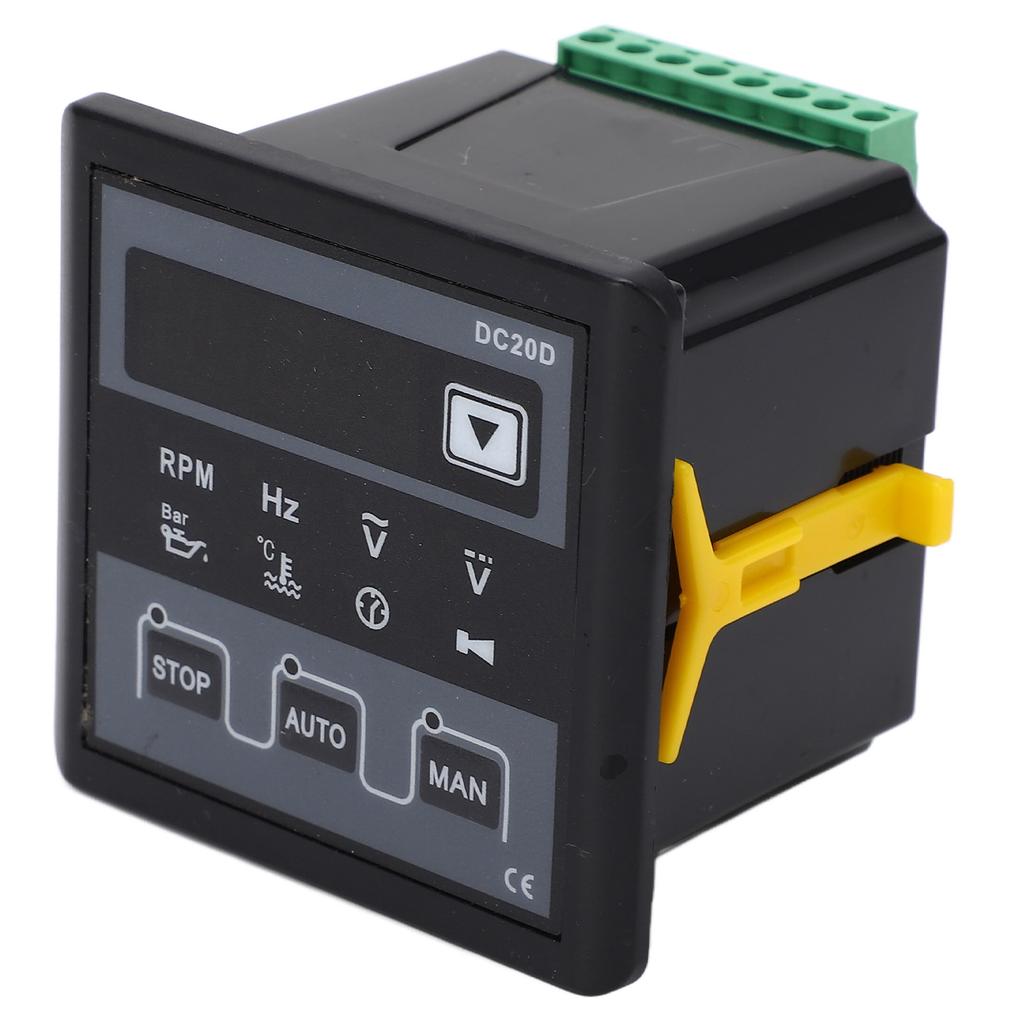

DC20D Generator Controller 5 Digit LED Display Air Cooled Diesel Generator Controller AC20‑276V

Feature: 1. Minicomputer Control: This DC20D generator controller has microcomputer control, manual or automatic start and stop. 2. 5 Digit LED Tube: The DC20D generator controller has a 5 digit LED tube display, making your observation more intuitive. 3. Output Relays: Our generator controller features two sets of programmable output relays with universal custom settings for a wide range of models. 4. LED Indicator: This DC20D generator controller has LED indicator and fault coding display alarm indication. 5. Protection Function: The generator controller has low lubricating oil pressure protection, low cooling water level protection, high cooling water temperature protection, generator over voltage protection, etc. Specification: Item Type: Diesel Generator Controller Model: DC20D Power Supply: DC8-36V Power Consumption: Maximum 3W Frequency Signal Input: 10-70Hz Input Voltage Range: AC20-276V Relay Output Starter Output: Maximum 3.5A Fuel Output: Maximum 3.5A Configurable Relay Output: Maximum 3.5A Excitation Output: Maximum 3.5A Control Function Automatic Coil Control Start Delay Control Local Manual Start Stop Remote Automatic Start Stop Automatic Start Motor Rewind Since, Oil Pressure Switch Rewind Motor Preheat Control Cold Engine Control Stop Idle Speed Control Parameter Display. Engine Speed Generator Frequency Generator AC Voltage Engine Battery Voltage Engine Oil Pressure Engine Water Temperature Accumulated Running Time Protection Function Lube Oil Pressure Low Protection Cooling Water Level Low Protection Cooling Water Temperature High Protection Generator Over Voltage Protection Over Frequency Over Speed Protection Emergency Stop Of Generator Set Engine Stop Failure Engine Start Failure Low Fuel Level Warning Low Battery Voltage Warning Configuration Method. Configure Parameters Via The Controller Front Panel Buttons DC20D Genset Control Module Introduction The DC20D is a controller for diesel engines or generators. It has automatic start/stop, protection and alarm indication functions. The panel contains DC power supply and running status indication function; the monitoring part has over speed, over frequency, over generator voltage, low oil pressure, high water temperature, low water level, start failure, stop timeout, emergency stop alarm and low battery voltage fault indication, which is more convenient to judge the status of the engine and generator. The output contact adopts relay, which can withstand large output current, and the system parameters can be set according to the keypad, so as to meet the application of different situations. Package List: 1 x DC20D Generator Controller 1 x Manual 1 x Label
