Feature:
1. SENSOR ADVANTAGES: The tension force sensor has the characteristics of low height, large contact area, and high comprehensive accuracy.
2. EASY OPERATION: The industrial load cell sensor is column type design, with a compact structure, convenient installation, and simple wiring.
3. MAIN PURPOSE: This sensor is mainly used for electronic weighing and tension pressure detection, with a large range and high sensitivity.
4. SUSTAINLESS STEEL: The weighing sensor is made of stainless steel, rust and corrosion resistance, and can be used in various environments.
5. WIDE APPLICATION: Can be used for pressing equipment, mobile phone assembly, small pressure platforms, hydraulic presses, electronic hook scales, etc.
Specification:

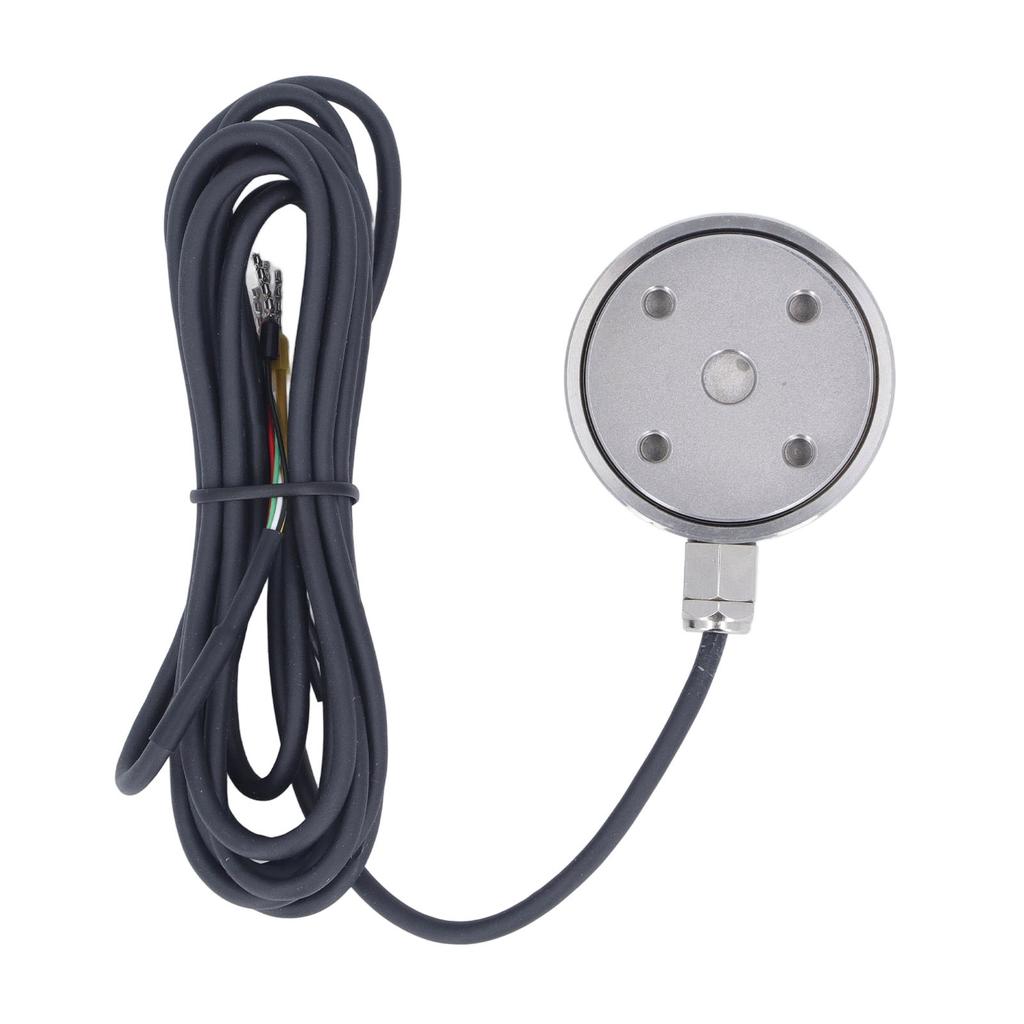

Item Type: Load Cell Sensor
Model: DYZ 101
Sensitivity: 1.0MV2.0MV
Non Linearity: +0.5percent FS
Lag: +0.1percent FS
Repeatability: +0.05percent FS
Creep: +0.1percent FS30min
Zero Point Output: +1percent FS
Zero Temperature Coefficient: +0.1percent FS10 celsius
Sensitivity Temperature Coefficient: +0.1percent FS10 celsius
Working Temperature Range: 20 celsius +80 celsius
Input Resistance: 400+20 Ohm
Output Resistance: 350+5 Ohm
Safety Overload: 150percent FS
Insulation Resistance: more than 5000M Ohm (50VDC)
Recommended Excitation Voltage: 10V15V.
Package List:
1 x Load Cell SensorSENSOR ADVANTAGES: The tension force sensor has the characteristics of low height, large contact area, and high comprehensive accuracy.
EASY OPERATION: The industrial load cell sensor is column type design, with a compact structure, convenient installation, and simple wiring.
MAIN PURPOSE: This sensor is mainly used for electronic weighing and tension pressure detection, with a large range and high sensitivity.
SUSTAINLESS STEEL: The weighing sensor is made of stainless steel, rust and corrosion resistance, and can be used in various environments.
WIDE APPLICATION: Can be used for pressing equipment, mobile phone assembly, small pressure platforms, hydraulic presses, electronic hook scales, etc.
