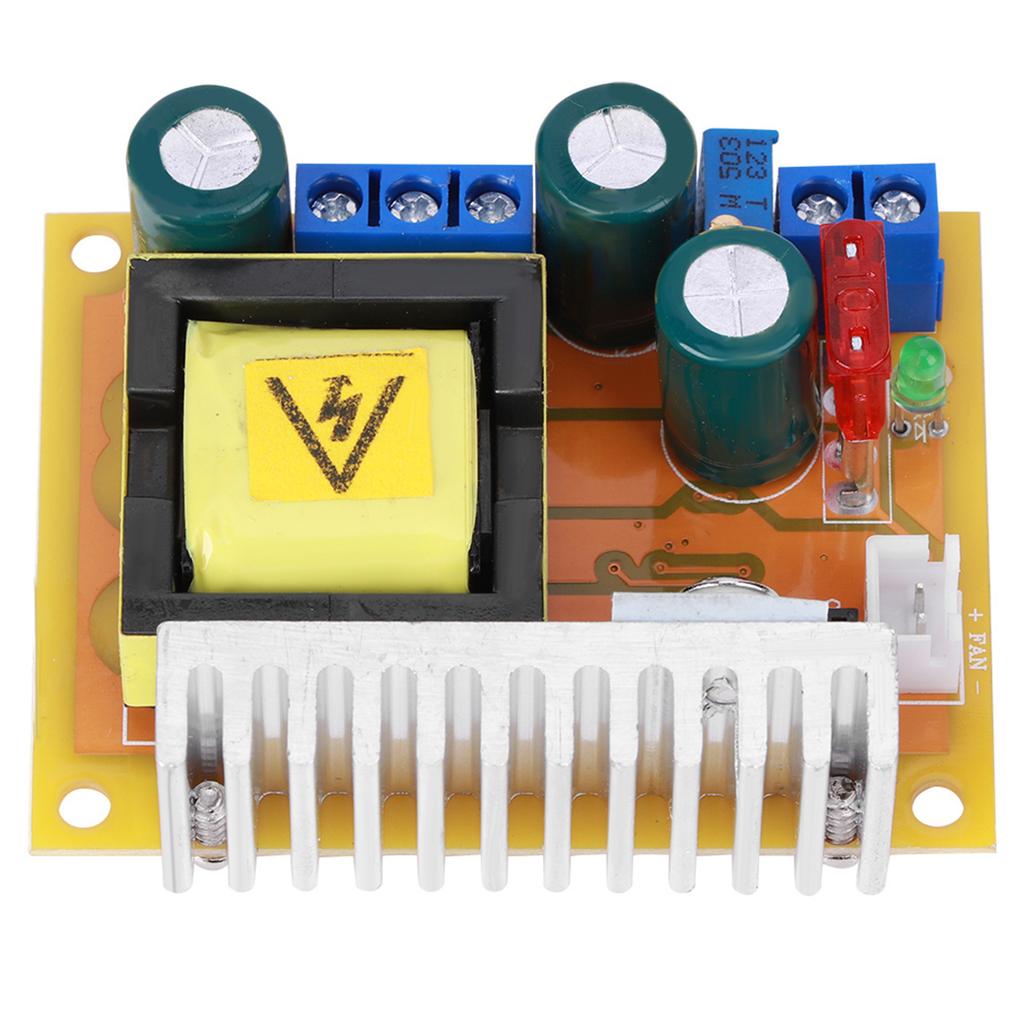

Description
:
This boost module has voltage stabilizing function. It is used for capacitance charging, hunting and deratization or as power supply of electromagnetic gun, electronic equipment, or test power supply of voltage or glow tube.
Features
:
1, Voltage stabilizing function.Non-isolation boost module.
2, Output voltage won\'t change over input voltage.
3, Support short circuit .
4, Support over current/voltage .
5, Support reverse input .
Specifications
:
Input Voltage:(2 options, select through the jumper wire on the back of
PCB
)
a, 8-16V
b, 10-32V(default)
Input Current: 5A(Maximum)
Quiescent Current: 15mA(will be higher when 12V to 50V)
Output Voltage: ±45-390V(default ±50V)
Output Current: Maximum 0.2A(associated with input, output voltage)
Output Power: 40W(Maximum 70W)
Working Temperature: -40 to +85 degrees (ambient temperature too high, please strengthen cooling)
Frequency: 75KHz
Conversion Efficiency: 88%(max)
Short Circuit : Support(please do not pull short circuit arc directly at output. Direct short circuit arc is likely to damage the rectifier devices. Please connect power resistors in series to limit current)
Over Current : Support(reduce output voltage when input current is over 4.5A)
Over Voltage : Support(reduce output voltage when it is over 410V)
Reverse Input : Support(fuse)
Installation : Four 3mm screw No-welding terminals
Suitable for:
1, Capacitance charging, or power supply of electromagnetic gun.
2, Power supply of electronic equipment.
3, Test power supply of voltage or
glow
tube.
4, Hunting and deratization.
Package includes
:
1 x
Boost Module
No
te
:
1. Be careful! This module has high output voltage, which is dangerous to human and animals.
2.
Please note that the new t
ype and old type of this product will be sent randomly, and make sure you will not mind before ordering
